MODEL NAME: |

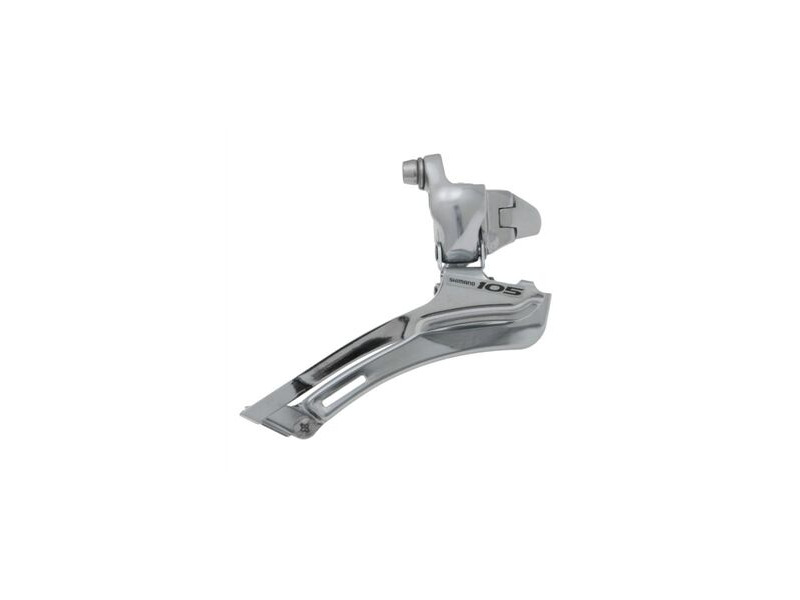

SHIMANO 105 FD5603 Triple Front Mech |
PRICE: |
MSSP £37.18 OUR PRICE £31.00
CARRIAGE: Add item to Basket to show carriage costs (you can easily remove it)
|
PRODUCT OPTIONS |
28.6-31.8 band on - CURRENTLY UNAVAILABLE,
34.9 band on ,
Braze on - CURRENTLY UNAVAILABLE |
Description |
The wide pivot link design boosts strength and rigidity. Flex is suppressed, creating sharp, precise shifts that are faster and smoother, even from low to high gears off of the saddle.
· Wide link design: 20% increased rigidity.
· Pivot locations for less cage deflection: Pivot location at cage was moved to the point of maximum force to reduce cage deflection.
· Narrower chain cage: Narrower chain cage to accommodate 10-speed chain.
· Hyperdrive compatible
· Light action spring
· Dual SIS front index shifting
· Specially-designed for 10-speed
Specifications:
· Cassette Compatibility - 10-speed
· Top Gear Teeth - 50T
· Maximum Capacity - 20T (triple)
· Spring Cover - yes
· Chain Stay Angle - 63-66
· Mounting - Braze-on or Clamp (28.6/31.9mm or 34.9mm)
· Chain Line - 45mm
· Band Material - Aluminum/clear coated
· Outer Link - Aluminum/clear coated
· Inner Link - Aluminum/clear coated
· Chain Guide - Steel/chrome plated
· Average Weight - 122g
|
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. |
