SABBATH Silk Road 105 R7000 11spd Double

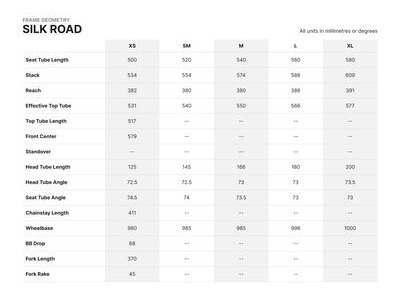

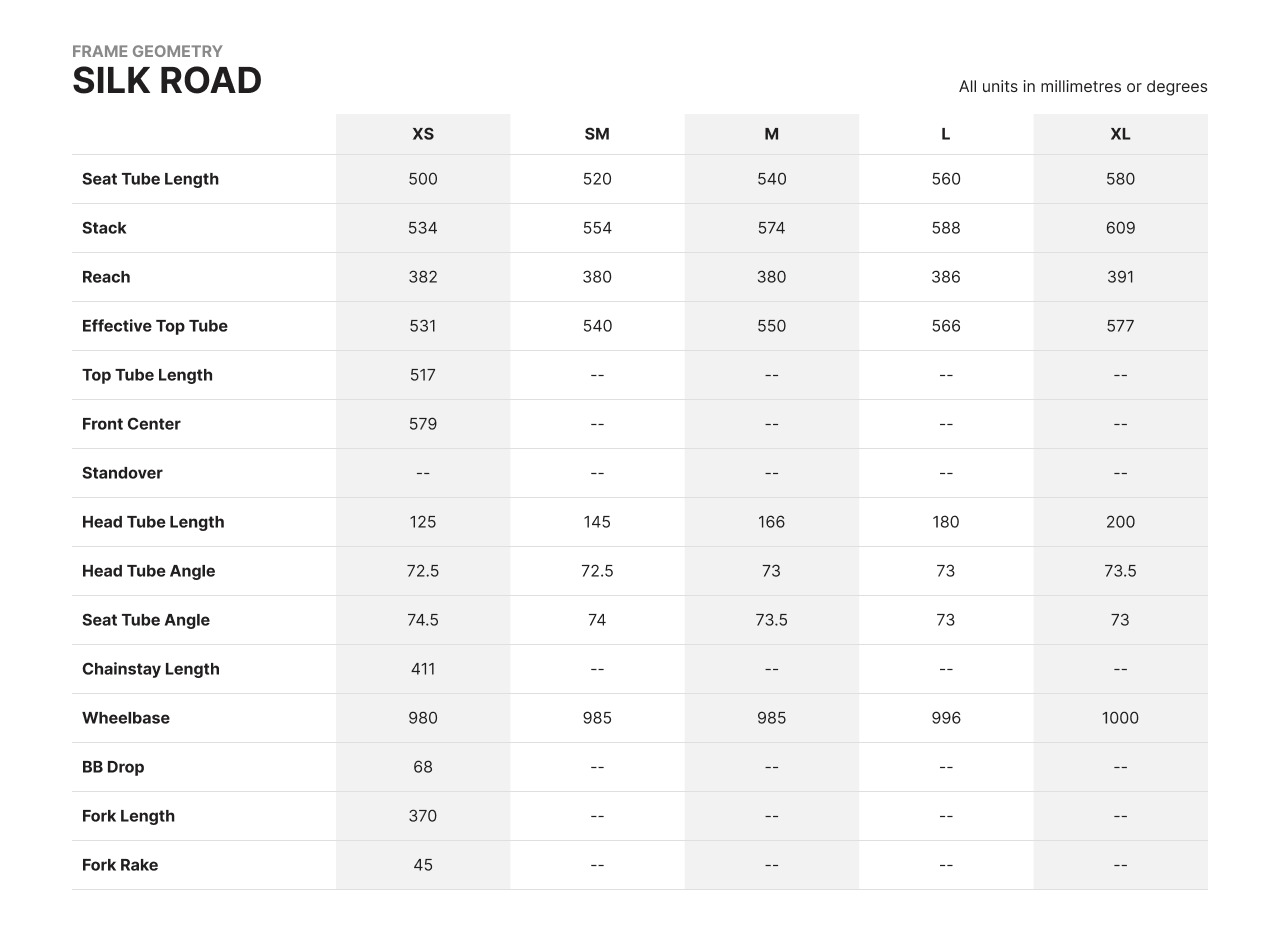

For Frame Geometries, please click on the pictures.

Frame warranty is 10 years to original owner with invoice or purchase receipt

SIZE	XS	S	M	L	XL
Recommended typical rider height	5'2-5'7 (157-170cm)	5'6-5'10 (167-177cm)	5'9-6'0 (175-182cm)	5'11-6'2 (180-187cm)	6'1-6'6 (185-198cm)
Actual seat tube (CT)	50	52	54	56	58
Top tube (equivalent)	53	54	55	56.6	57.7
Seat angle	74.5	74	73.5	73	73
Head angle	72.5	72.5	73	73	73.5
Head tube length	12.5	14.5	16.5	18	20
Frame Weight	1.3kg	1.35kg	1.4kg	1.5kg	1.55kg
Stack height	53.4	55.4	57.4	58.8	60.9
Reach	38.2	38	38	38.6	39.1
Wheel base	98	98.5	98.5	99.6	100

rrp £2200.00

Sale £1490.00

Options	XS/50cm Sml/52cm Med/54cm Lge/56cm XL/58cm
Style	Titanium Sportive bike. As tested in cycling weekly - "we have ridden titanium bikes that cost three times the price but lack the combination of comfort and stiffness"
Frame	Ti 3Al/2.5V
Forks	Carbon (with alloy steerer)
Rear Derailleur	Shimano 105 RD-R7000 GS
Front Derailleur	Shimano 105 FD-R7000
Shifters	Shimano 105 ST-R7000
Chainset	Shimano 105 FC-R7000 50/34 (choice of crank length)
Bottom Bracket	Shimano BB-R60
Chain	KMC X11-93
Freewheel	Shimano 105 CS-R7000 11-32 (other ratios available)
Headset	FSA Orbit Equipe
Stem	FSA OS-167 (60-130mm)
Handlebars	FSA Wing Compact (38-44cm)
Front Brake	Shmano 105 BR-R7000 Dual-Pivot Caliper
Rear Brake	Shmano 105 BR-R7000 Dual-Pivot Caliper
Tyres	Schwalbe One 700x25c
Saddle	Spa Navigator
Seatpost	FSA SL-281 27.2mm
Grips	Spa EVA Cork Gel Black (colour options available)
Wheelset	Shimano WH-RS100
Wheel size	700c

As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
