SABBATH AR1 Disc 11spd Ultegra (R8000) Hydraulic SPECIAL OFFER

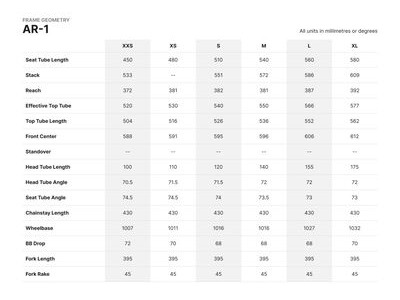

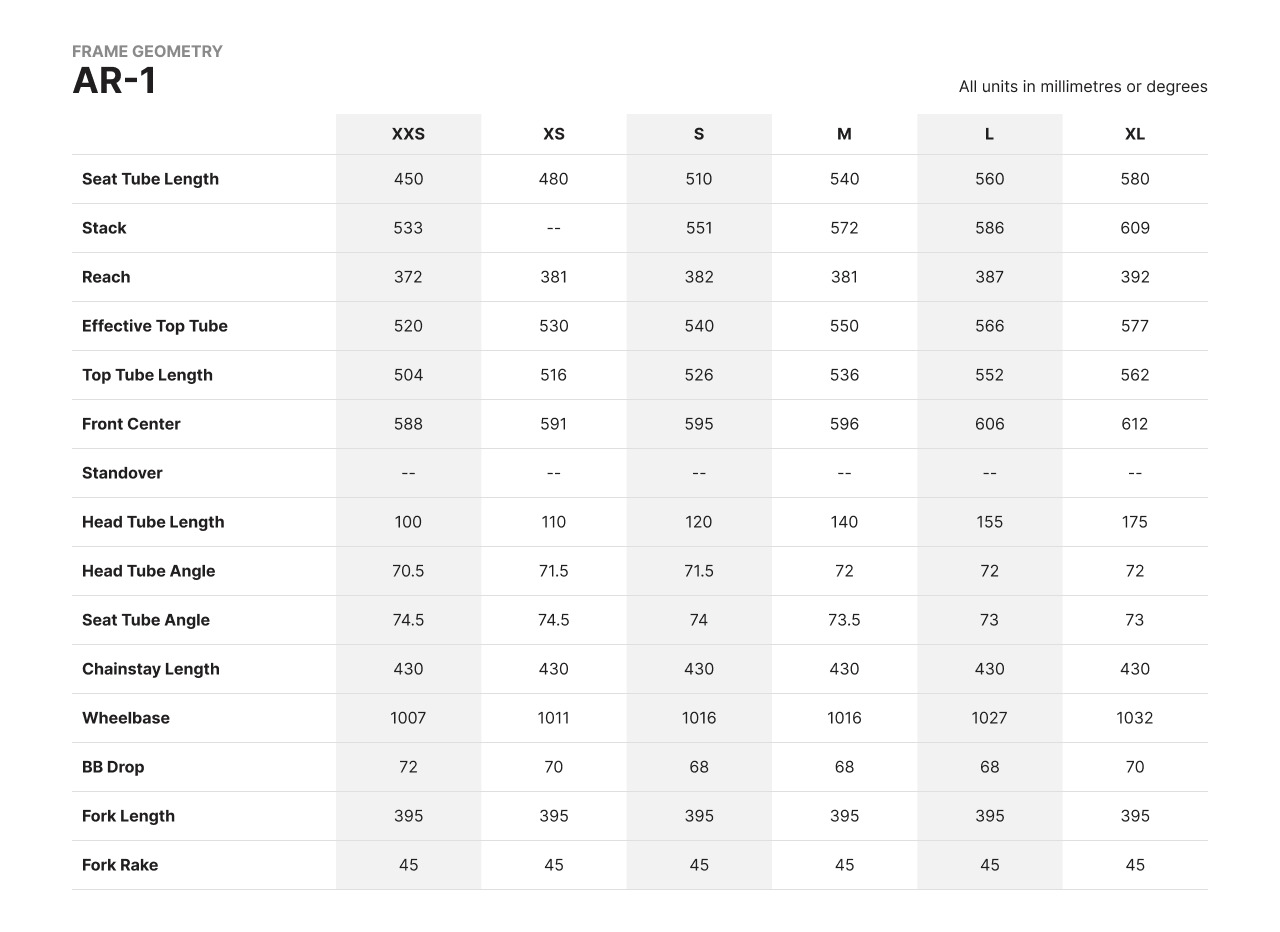

For Frame Geometries, please click on the pictures.
Frame warranty is 10 years to original owner with invoice or purchase receipt
| SIZE | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Recommended typical rider height | 5'2-5'7 (157-170cm) | 5'6-5'10 (167-177cm) | 5'9-6'0 (175-182cm) | 5'11-6'2 (180-187cm) | 6'1-6'6 (185-198cm) |
| Actual seat tube (CT) | 50 | 52 | 54 | 56 | 58 |
| Top tube (equivalent) | 53 | 54 | 55 | 56.6 | 57.7 |
| Seat angle | 74.5 | 74 | 73.5 | 73 | 73 |
| Head angle | 71.5 | 71.5 | 72 | 72 | 72.5 |
| Head tube length | 11 | 12 | 14 | 15.5 | 17.5 |
| Stack height | 54 | 55.1 | 57.2 | 58.6 | 60.9 |
| Reach | 38 | 38.2 | 38.1 | 38.7 | 39.2 |
| Wheel base | 101.1 | 101.5 | 101.6 | 102.7 | 103.2 |
Pricing
rrp £3199.00
Sale £2520.00
| Options | XXS bright brush XS bright brush S bright brush CURRENTLY UNAVAILABLE M bright brush L bright brush XL bright brush |
|---|---|
| Style | Sabbath AR-1 Audax riders looking for all year round riding bike. The convenience and flexibility of a bike that ticks so many boxes. Now available with a Shimano Ultegra 11spd groupset. |
| Frame | Bright Brush |
| Forks | Carbon-Alloy QR, or Full Carbon QR (+£40) |
| Rear Derailleur | Shimano Ultegra RD-R8000 GS |
| Front Derailleur | Shimano Ultegra FD-R8000 (with FC-R8000, Spa TD-2) Shimano GRX FD-RX810 (with FC-RX600) |
| Shifters | Shimano Ultegra ST-R8020 (Hydraulic) |
| Chainset | Shimano Ultegra FC-R8000 50/34, or Shimano GRX FC-RX600 46/30. Spa TD-2 Super Compact options available (44/28, 42/26, 40/24) Choice of crank lengths available |
| Bottom Bracket | Shimano BB-R60 (with FC-R8000 & FC-RX600) First Components DX-30 (with Spa TD-2) |
| Chain | KMC X11-93 |
| Freewheel | Shimano Ultegra CS-R8000 11-28, 11-30 or 11-32; or CS-HG800 11-34 Shimano Deore XT CS-M8000 11-40 with Derailleur extender available (+£40) (not in conjunction with 50/34 chainset) |
| Headset | FSA Orbit ITA |
| Stem | FSA Omega OS-167 (available lengths 60-130mm) |
| Handlebars | FSA Wing Compact or FSA Adventure Flare (available widths 38-46cm) |
| Front Brake | Shimano BR-RS785 (Hydraulic) |
| Rear Brake | Shimano BR-RS785 (Hydraulic) |
| Brake Levers | N/A |
| Rims | Kinlin XR-26RTS Black, or Kinlin XR-22RTS Black for our lighter riders |
| Front Hub | Bitex BX106F Centre-Lock Black; 24, 28 or 32h |
| Rear Hub | Bitex BX106R Centre-Lock Black; 28, 32 or 36h |
| Spokes | Sapim Race/Leader Stainless (Silver or Black) Sapim CX-Ray Black (with Alloy Nipples) +£60 |
| Tyres | Schwalbe One 700 x 28C or 30C. Tubeless options available (+£25 plus tyre upgrade costs) |
| Saddle | Brooks Cambium C17 All-Weather |
| Seatpost | FSA SL-281 31.6mm, or USE Duro Titanium (+£90) |
| Grips | Spa Cork EVA Gel Black (other colours available) |
| Miscellaneous | SKS CAB Mudguards |
| Wheelset | Handbuilt |
| Wheel size | 700c |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying.
